Applied range

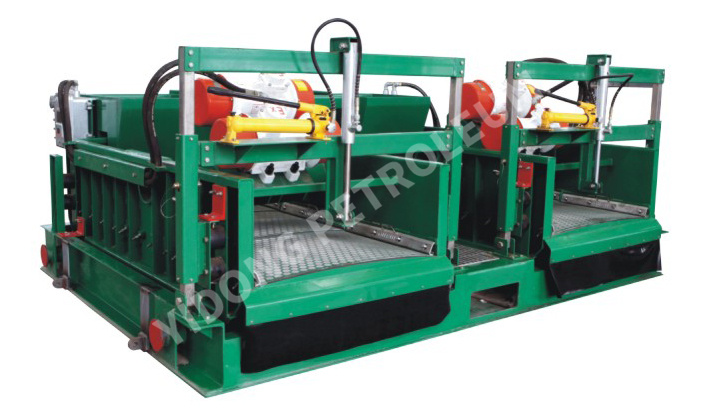

ZS-1shale shaker is a prlmary purifying equipment in the petroleum solids controlling system,it isMainly designed to remove harmful solids from drilingfluid.

zS-1 shale shaker is suited to various drilling devices of 2000-meter or bigger.

Structure features

Directly powered by acute blbratory electromotor the driving system lis safe and rellable and canrealize working without any accident.

The block-screen has two structures of flat and ripple with big filtrating area to be applied tovarious situations in mud dealing.Also,it could be replaced easily and rapidly.

The balancing part of the shaker skeleton with upright supporter made in USA shows wellvibratory performance,low noises and long life.

Hydraulic pressure system can easily adjust the incllne angle of the shaker skeleton by :5° whenlt is running which ensures the mud to be treated reasonably and efficiently.

ZS-1 shale shaker shows a tight structure,slender frame and small occupation.
