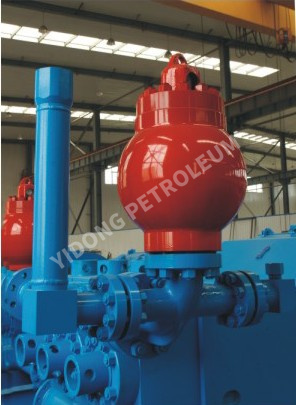

The hydraulic end mainly consists of a hydraulic cylinder, discharge pipe, air bag, valve assembly, cylinder liner, and piston.

Technical characteristics

Each sealing part adopts rigid compression, with good high-pressure sealing performance;

Vertical hydraulic cylinder with good suction performance;

The L-type hydraulic cylinder has high pressure resistance and is easy to replace the valve assembly;

The exhaust port is equipped with an exhaust air bag, a shear pin safety valve, and an exhaust filter screen respectively;

The hydraulic ends of F-1300 and F-1600 drilling pumps are interchangeable.
